DIN RAIL INSTRUMENTATION

Compact and dependable signal processing solutions are essential for maintaining precision and performance. Loadtech addresses this need with a specialized range of din rails.

Loadtech

Application

These modules are optimized for integration into industrial weighing systems, particularly in space-constrained settings where strong, reliable signal transmission is critical. Their durable design ensures consistent performance in demanding conditions, making them suitable for both wired and wireless load cell configurations.

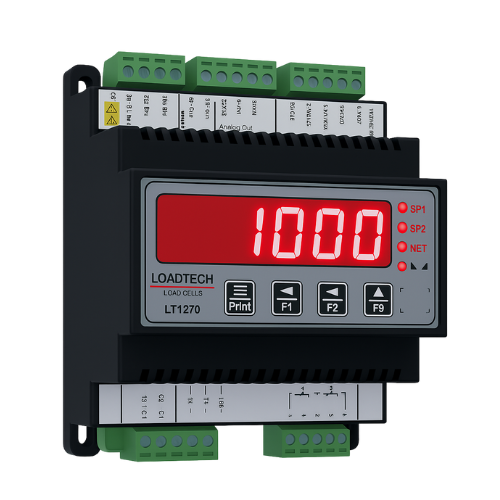

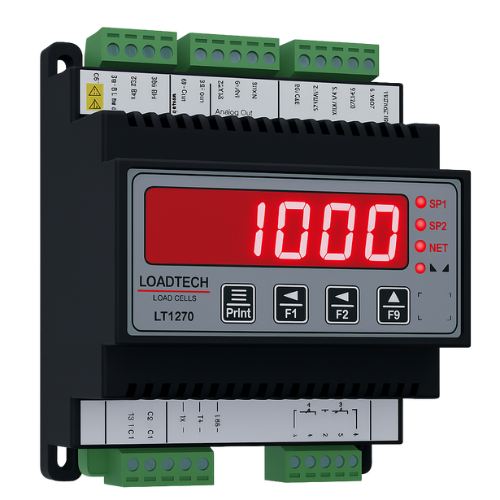

LT1270 Din Rail Mount Load Cell Meter
  • High-precision digital indicator for load cell and strain gauge applications
  • Bright 6-digit LED display for clear visibility and easy setup
  • User-friendly menu system with built-in configuration help hints
  • Calibration via load cell certificates or known weights
  • Standard universal power supply (85–264VAC) with optional low/high voltage variants
  • Precision circuitry compensates for temperature drift and cable loss
  • Supports 4- and 6-wire load cells, powering up to 6×350Ω
  • RS232 and RS485 communication with MODBUS™ RTU/ASCII and simple ASCII protocols

Additional features

  • 2 programmable mechanical relays
  • Analog output options: 0/4–20mA or 0–10V
  • Auto-zero tracking
  • User input linearisation
  • Max/min value recording
  • Security menu lockout

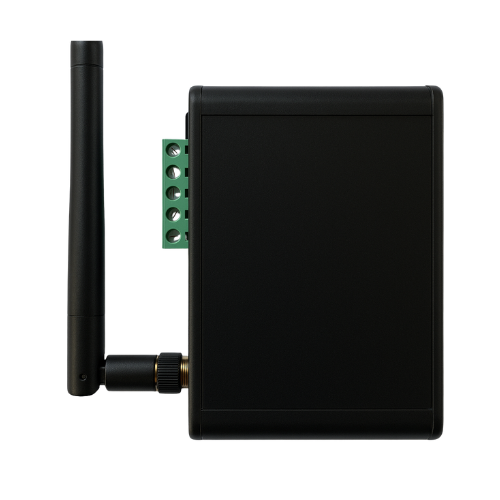

LT1285-RS485 Radio Link
  • Wireless serial cable replacement for industrial communication and device integration
  • Operates in the license-free 2.4GHz ISM band with up to 1 km line-of-sight range
  • Durable aluminum enclosure with industrial-grade electronics for harsh environments
  • Ideal for SCADA systems, industrial automation, and remote data acquisition
  • Utilizes DSSS (Direct Sequence Spread Spectrum) for reliable performance in noisy conditions
  • Supports 128-bit AES encryption for secure wireless data transmission
  • Available with RS485 interface

Flexible network modes

  • Peer-to-peer (no master/slave setup)
  • Point-to-point, point-to-multipoint, and repeater topologies

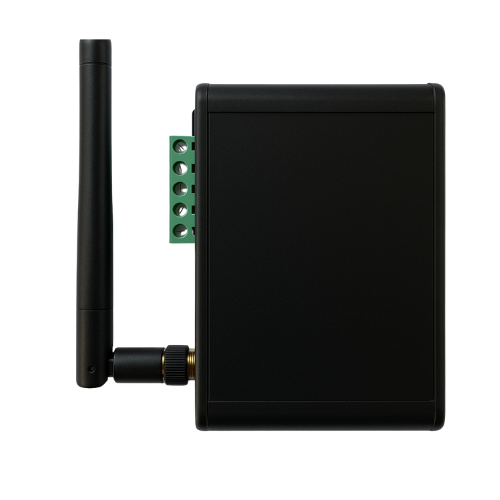

LT1280 -RS232 Radio Link
  • Wireless serial cable replacement for seamless device communication in various industrial applications
  • Operates on the license-free 2.4GHz ISM band with up to 1 km line-of-sight range
  • Rugged aluminum enclosure and industrial-grade electronics for harsh environments
  • Ideal for SCADA systems, industrial automation, and remote data acquisition
  • Features DSSS (Direct Sequence Spread Spectrum) for reliable operation in noisy RF environments
  • Supports 128-bit AES encryption for secure wireless data transmission
  • Available with RS232 interface

Configurable network topologies:

  • Peer-to-peer (no master/slave)
  • Point-to-point, point-to-multipoint, and repeater setups

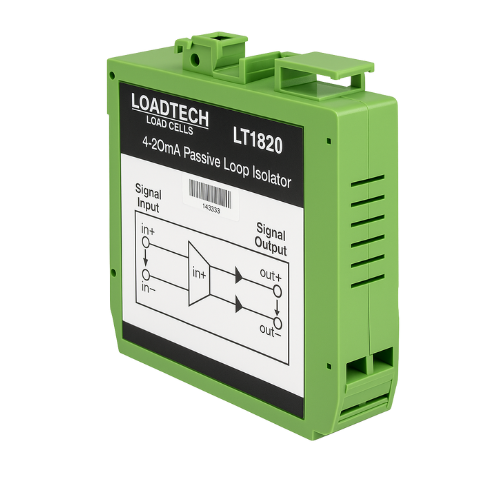

LT1820 Loop Isolater
  • 4–20mA passive input/output isolator designed to eliminate ground loop issues
  • No external power supply required for operation
  • Features two-port isolation between input and output with an isolation voltage of over 3kV
  • Ensures high accuracy and linearity better than 0.1% FS
  • Low voltage drop with high frequency response for precision applications
  • Capable of driving loads up to 300 ohms
  • Housed in a compact DIN rail mount enclosure for easy installation and space efficiency
