Wall MOUNT INSTRUMENTATION

These wall mounted transmitters delivers precise, reliable performance for industrial weighing systems.

Loadtech

Application

Designed for harsh environments, it features an IP65-rated enclosure ideal for wall-mounted use in factories, silos, batching plants, and outdoor installations.

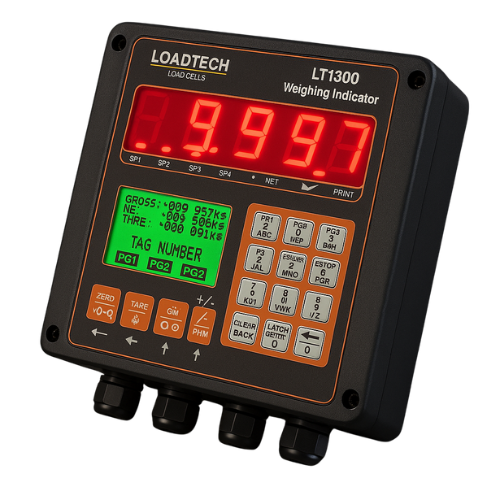

LT1300 Wall Mount Load Cell Transmitter
  • High-precision load cell indicator for load cell and strain gauge applications
  • Wall mount design with bright 6-digit LED and sunlight-readable LCD display
  • Simple menu system for quick setup and configuration
  • Calibration options via load cell certificate or known weights
  • Supports 4– and 6-wire load cells with +5VDC excitation
  • Powers up to 6x 350Ω load cells
  • Choice of universal AC (85–264VAC) or isolated DC (10–30VDC) power supply
  • Ratiometric ADC circuitry for temperature and cable loss compensation
  • Standard RS232/RS485 communications with Modbus RTU/ASCII and simple ASCII output
  • Optional Ethernet TCP/IP connectivity
  • Analog output: 0/4–20mA or 0–10V

Advanced features

  • User-defined input linearisation
  • Programmable digital inputs and front panel buttons
  • Motion and zero indication
  • Advanced digital filtering
  • PI control
  • Security menu lockout

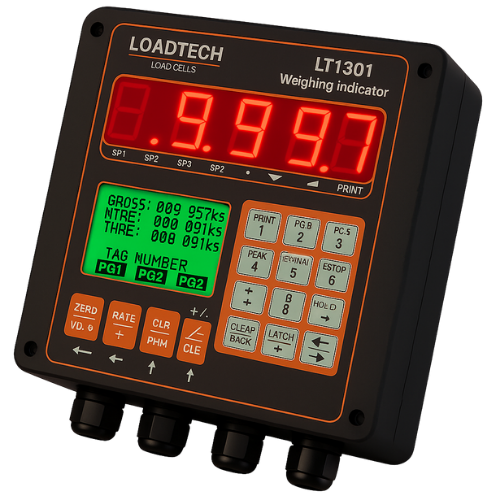

LT1301 Dual Load Cell Input Transmitter
  • High-precision digital indicator for dual load cell and strain gauge applications
  • Dual input channels with built-in summing capability
  • Bright 6-digit LED and sunlight-readable LCD display for clear visibility and easy setup
  • User-friendly menu system for configuring display and load cell settings
  • Calibration via load cell certificate or known weights
  • Supports 4- and 6-wire load cells with +5VDC excitation
  • Powers up to 6x 350Ω load cells
  • Selectable power supply: universal AC (85–264VAC) or isolated DC (10–30VDC)
  • Ratiometric ADC circuitry for temperature and cable loss compensation
  • Standard RS232/RS485 communications with Modbus RTU/ASCII and simple ASCII output
  • Optional Ethernet TCP/IP connectivity
  • Dual analog outputs: 0/4–20mA or 0–10V

Advanced features

  • Auto-zero tracking
  • Max/min value recording
  • User-defined input linearisation
  • Motion and zero indication
  • Programmable digital inputs and front panel buttons
  • Advanced digital filtering
  • PI control
  • Security menu lockout

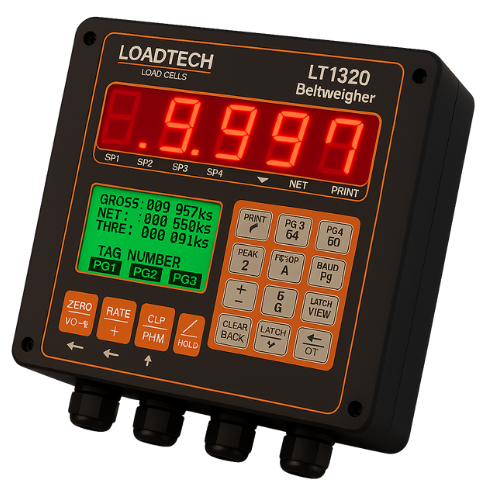

LT1320 Wall Mount Belt Weigher
  • High-precision digital indicator for belt weighing applications
  • Calculates material rate and total using weight and speed input from the conveyor system
  • Bright 6-digit LED and sunlight-readable LCD for clear display and easy setup
  • Simple menu system for configuring belt weighing and display settings
  • Calibration options via load cell certificate or dynamic belt calibration
  • Includes internal jumper-selectable power supply for encoder/tacho-generator and pulse counting input for belt speed measurement
  • Standard universal AC power supply (85–264VAC) with optional low voltage DC (10–30VDC)
  • Supports 4- and 6-wire load cells with 5VDC excitation; powers up to 6x 350Ω load cells
  • Ratiometric ADC compensates for temperature drift and cable losses
  • Built-in RS232/RS485 communications with MODBUS RTU/ASCII and simple ASCII output
  • Optional Ethernet TCP/IP connectivity
  • Analog output: 0/4–20mA or 0–10V for process control

Advanced features

  • Resettable and non-resettable totaliser
  • Dynamic tare and calibration
  • Auto-zero tracking
  • Max value recording
  • User input linearisation
  • Programmable digital inputs and front panel buttons
  • Security menu lockout
  • Dead band adjustment
  • Advanced digital filtering
  • Pulse output support

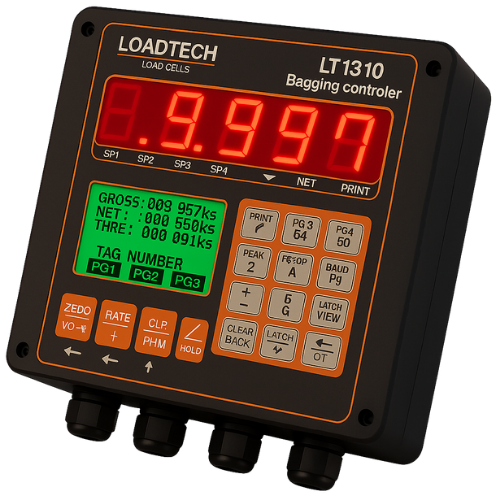

LT1310 Bagging/Container/ Packing Transmitter
  • Advanced digital controller for automated bag filling applications
  • Operates as either a gross or net weigher
  • High-brightness 6-digit LED and sunlight-readable LCD for easy setup and real-time monitoring
  • Simple menu system for configuring bagging and display settings
  • Calibration via load cell certificate or known weights
  • Supports 4- and 6-wire load cells with 5VDC excitation; powers up to 6x 350Ω load cells
  • Equipped with ratiometric ADC circuitry for temperature and cable loss compensation
  • Standard power supply: 85–264VAC, with optional 10–30VDC version available
  • RS232/RS485 communication with MODBUS RTU/ASCII and simple ASCII output
  • Optional Ethernet communication supporting Modbus TCP/IP and Modbus RTU over TCP/IP
  • Analog output: precision 4–20mA signal

Advanced features

  • Information display for bag count, total product, product rate (t/hr), and bag rate (bags/min)
  • Real-time status display of filling operation
  • Dedicated inputs for product low level, bag clamp, and bag feeler switch
  • Dedicated outputs for fast feed, slow/dribble feed, discharge door, and bag clamp control

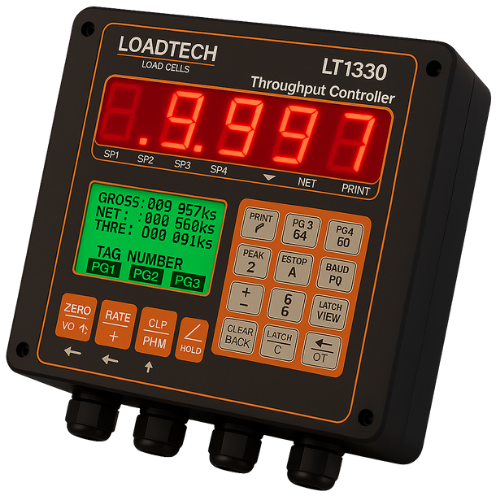

LT1330 Throughput Weigher
  • Advanced digital controller for throughput weighing applications
  • High-brightness 6-digit LED and sunlight-readable LCD for easy setup and real-time monitoring
  • User-friendly menu system for configuring display and weighing parameters
  • Calibration via load cell certificate or known weights
  • Supports 4- and 6-wire load cells with 5VDC excitation; powers up to 6x 350Ω load cells
  • Ratiometric ADC circuitry for automatic compensation of temperature and cable loss
  • Standard power supply: 85–264VAC; optional low voltage DC (10–30VDC) available
  • RS232/RS485 communication with MODBUS RTU/ASCII and simple ASCII output
  • Analog output: precision 0/4–20mA or 0–10V signal

Advanced features

  • Real-time status display of throughput filling operation
  • Optional digital inputs for start, stop, and interlock
  • Dedicated outputs for fill and discharge control

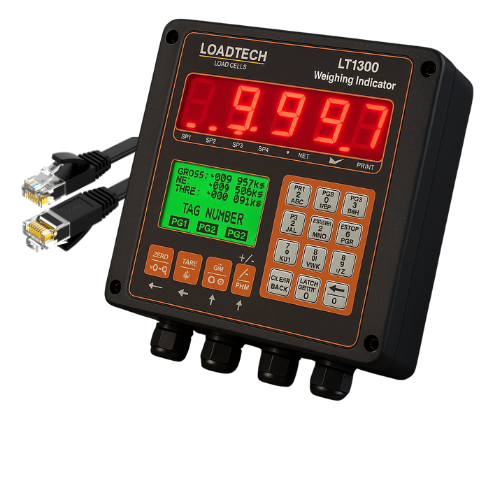

Ethernet TCP/ IP option on all Wall Mount Load Cell Transmitter
  • Next-generation wall-mounted controller for industrial weighing and process applications
  • Rugged IP65-rated enclosure, ideal for factories, batching plants, mining sites, and outdoor use
  • Bright high-contrast LED display for live process values, with secondary LCD for diagnostics and configuration
  • Built-in Ethernet TCP/IP with MODBUS TCP protocol for seamless integration with PLCs, SCADA, and IIoT systems
  • Flexible I/O options including analog/digital inputs, relay outputs, and optional expansion modules
  • Remote access and configuration via web interface or Modbus registers—supporting setup from anywhere
  • Universal power input (12–30 VDC / 110–240 VAC) with optional surge protection for enhanced reliability
  • Designed for real-time measurement, control, and communication in demanding industrial environments

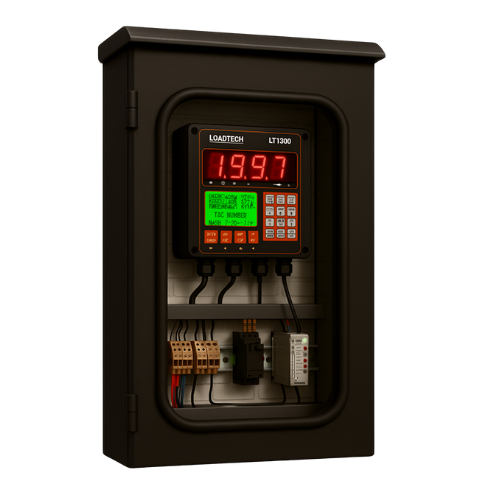

LT1602 Enclosure to House Wall mounts

Instrumentation enclosures are essential for safeguarding equipment and ensuring reliable, long-term operation in demanding industrial and commercial environments. They protect sensitive systems from physical, environmental, and electrical hazards while supporting efficient system integration.

Environmental Protection

  • Shields equipment from dust, moisture, corrosion, temperature extremes, and industrial chemicals

Mechanical Protection

  • Guards against impact, vibration, accidental damage, and tampering

Electrical Safety

  • Prevents short circuits and protects users from contact with live components

Performance & Longevity

  • Enhances equipment lifespan, ensures accurate readings, and reduces downtime and maintenance costs

Neatness & Integration

  • Enables organized wiring, simplified troubleshooting, and modular system design for streamlined installations
